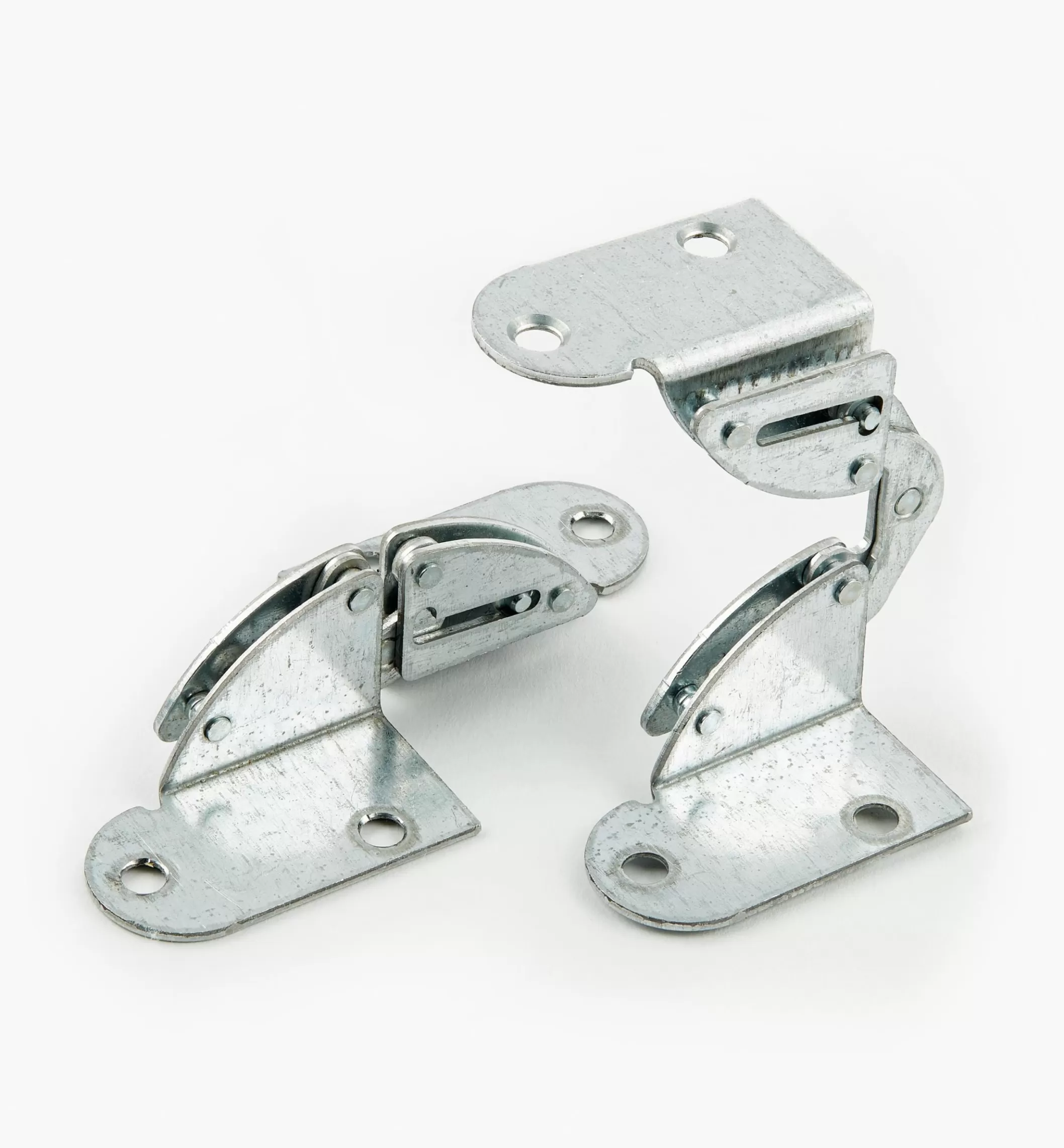

Cheap Lee Valley Folding Leaf Hinges

Used in combination with table-extension slides and a leaf-mount mechanism, these hinges let you build a folding table leaf that stores unobtrusively beneath the table top. When needed, the leaf pivots and unfolds into position once the table halves are separated.

Available in three sizes to accommodate different table-leaf thicknesses, these flush-mounting hinges have 180° stops and require a 7.5mm wide, 50mm long kerf or mortise in the leaf edge for installation.

The hinges remain concealed under the leaf when opened.

For a kerf/mortise depth of cut of 16mm, 20mm and 23mm, we recommend using the 18mm, 22mm and 25mm hinges, respectively.

Requires #8 screws (not included).
