Cheap Lee Valley Kreg 730 Micro-Pocket Drill Guide

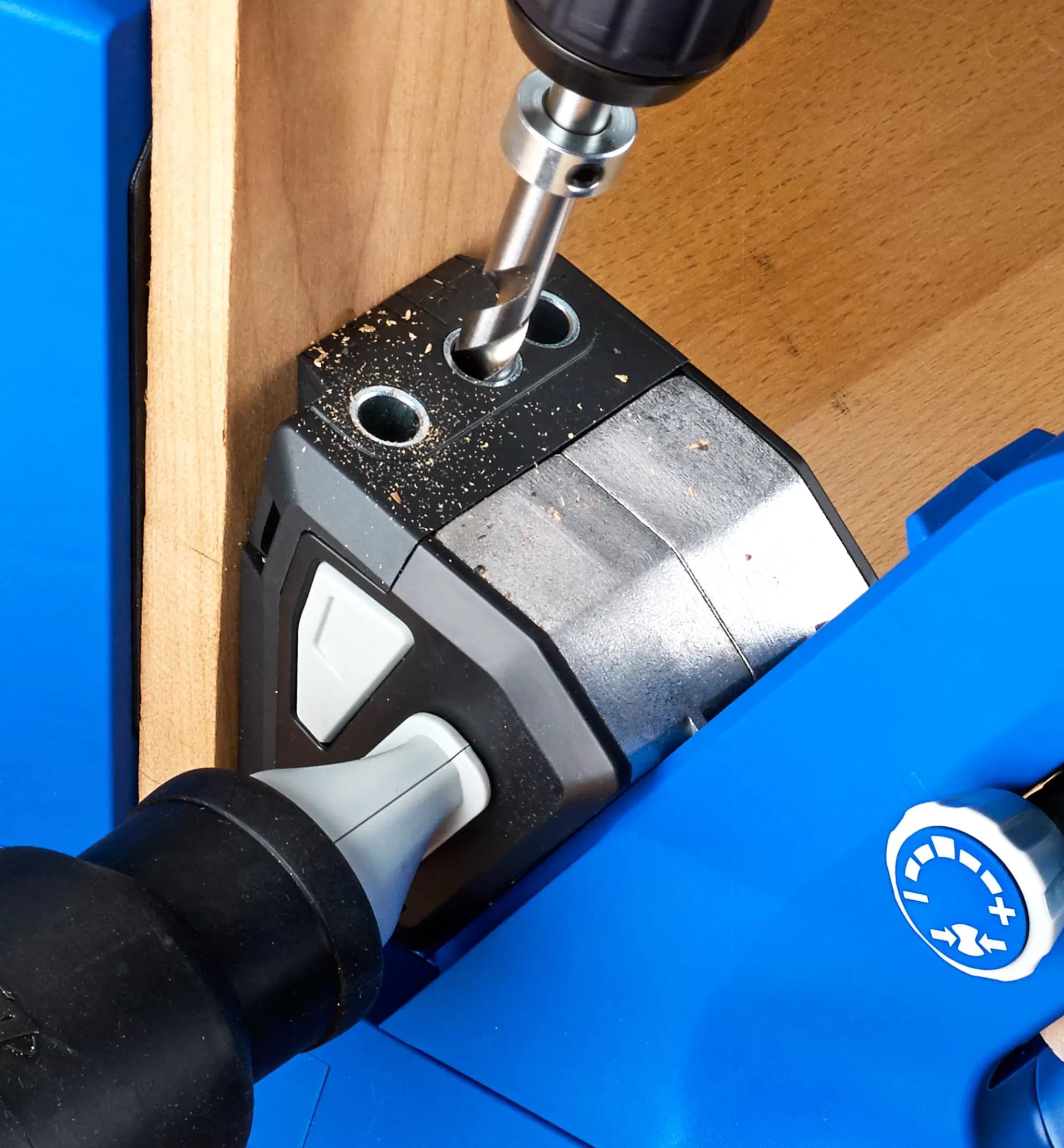

To expand the capability of the Kreg 720 and 720 Pro jig systems, this drilling guide block lets you take advantage of the simplicity and speed of pocket-hole joinery for smaller projects.

Ideal for 1/2″ to 3/4″ thick material (but also effective in thicker stock), it is used in place of the standard drilling block included with the 720-series jigs. It functions identically but uses a smaller stepped drill that lets you counterbore screws as small as #6 × 3/4″ and lets you place two screws closer together, as needed for small-scale work or repairs in tight spots.

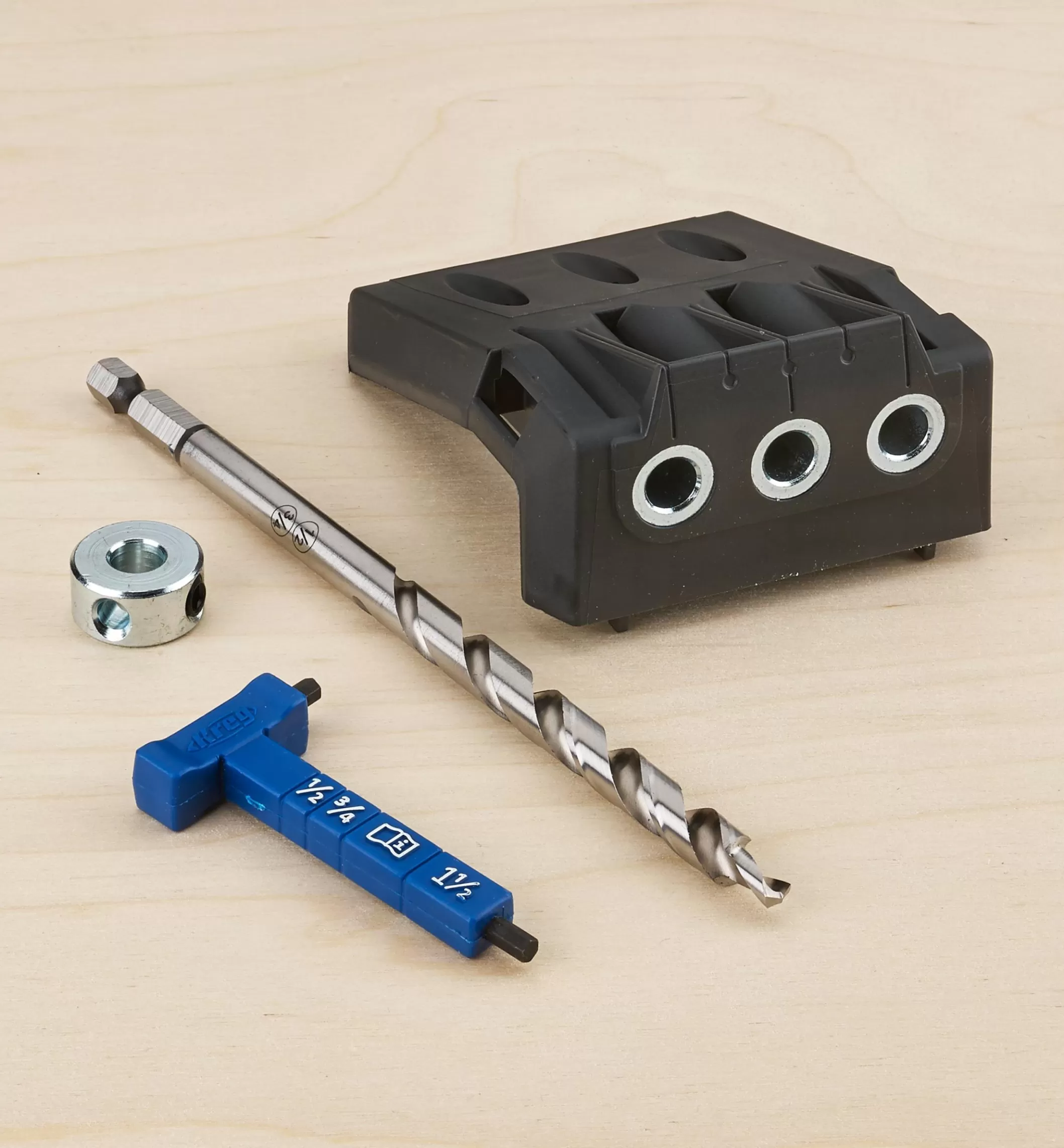

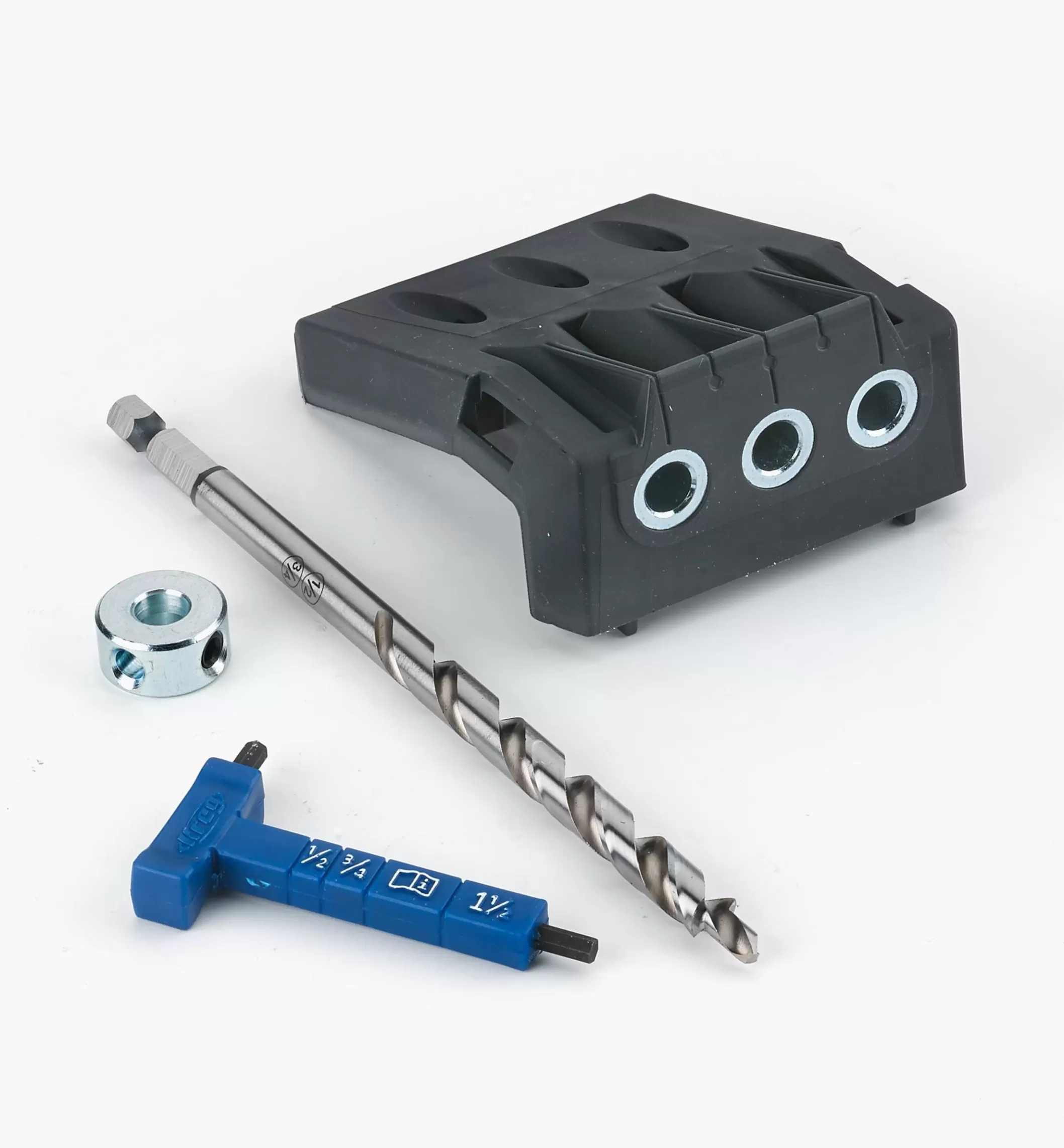

In addition to the steel and glass-reinforced nylon drilling block, it comes with a Kreg HSS Easy-Set drill bit and depth collar, as well as a combination hex key and material-thickness gauge. The 6 1/4″ long, 19/64″ diameter HSS stepped drill bit has a 1/4″ hex shank that’s grooved for use in quick-change chucks. For easy, accurate depth settings, simply align the hole in the depth collar with engraved markings on the shank, which indicate the correct settings for 1/2″ and 3/4″ thick material. Additional stepped drill bits are available separately.

Made in USA.
